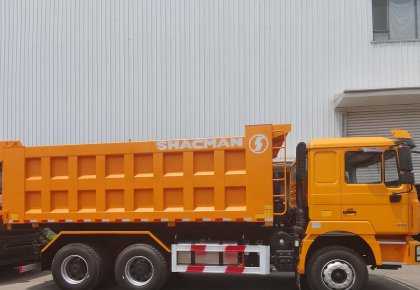

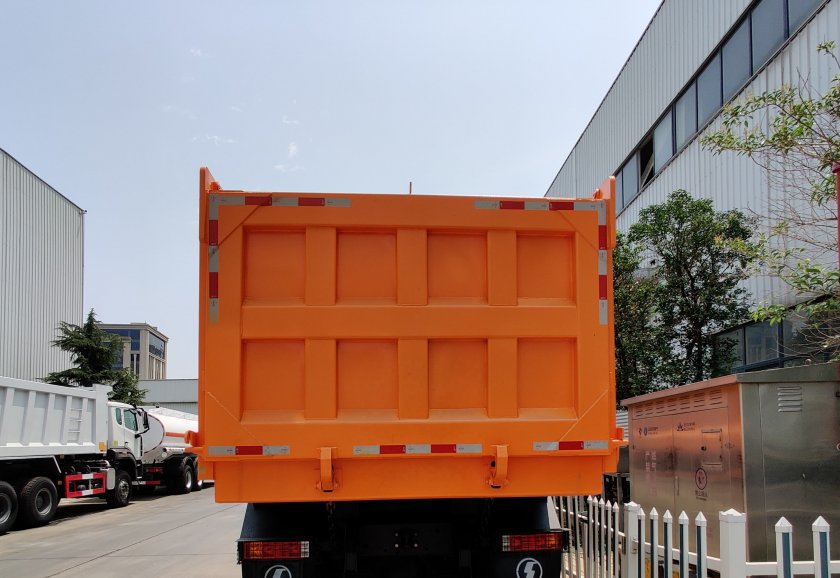

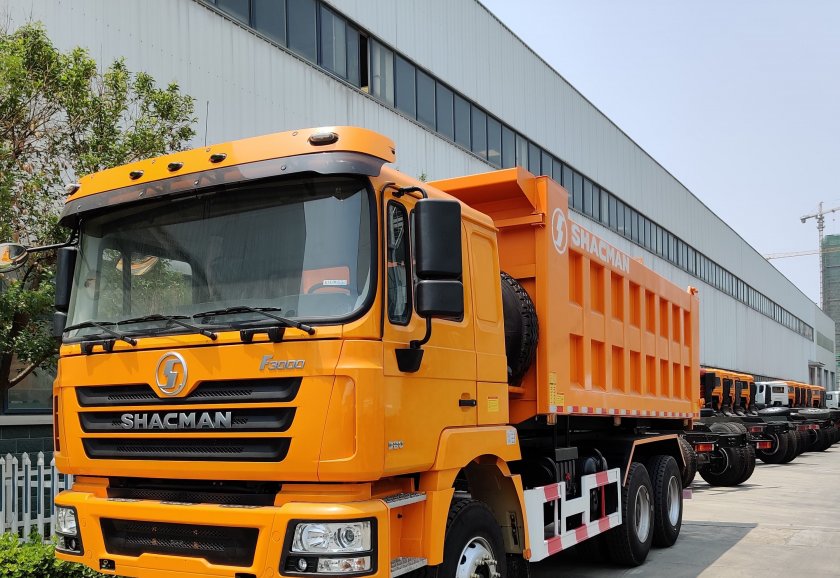

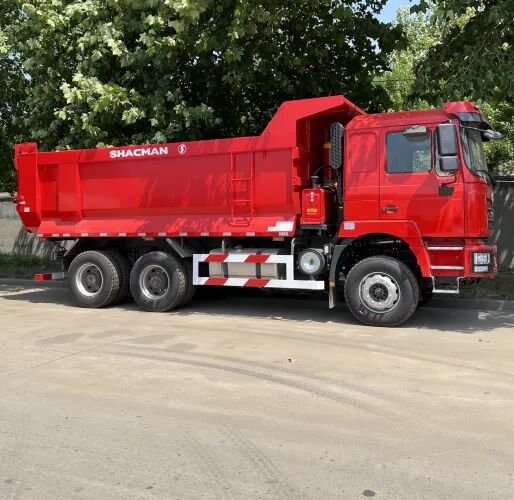

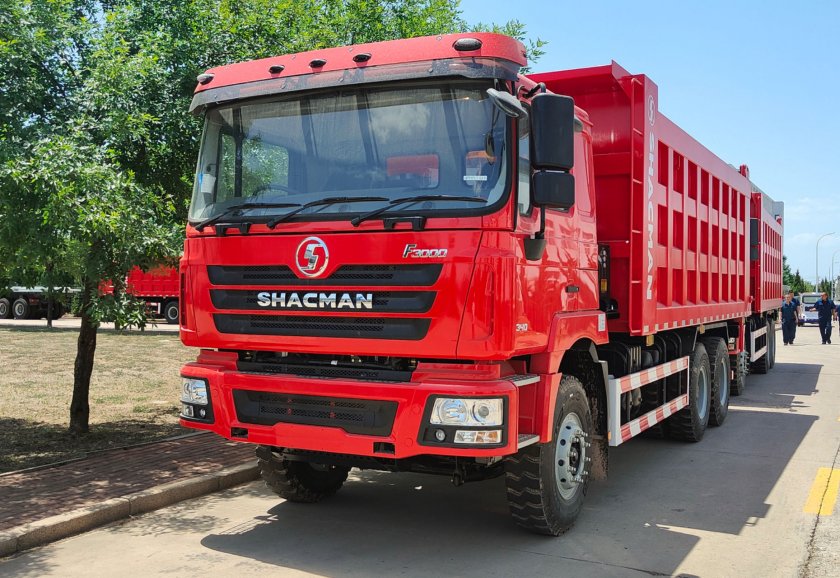

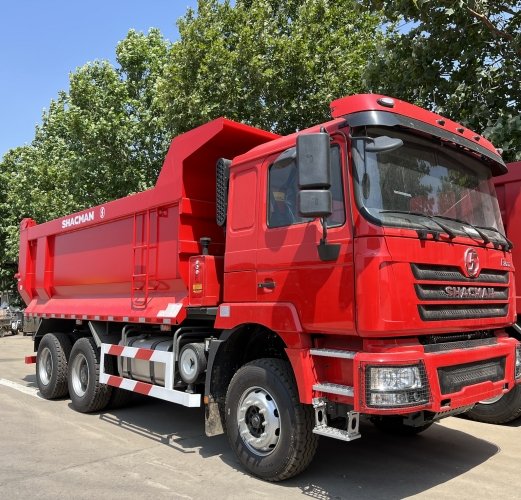

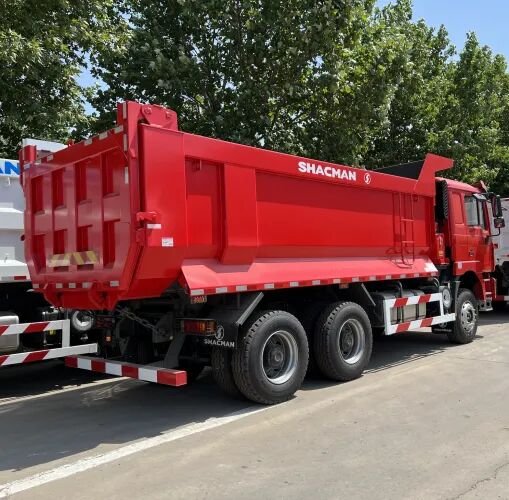

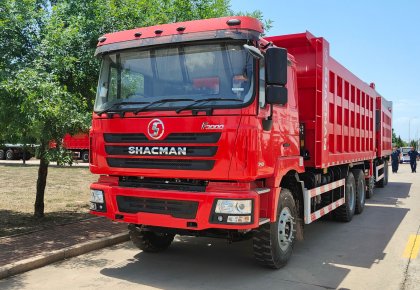

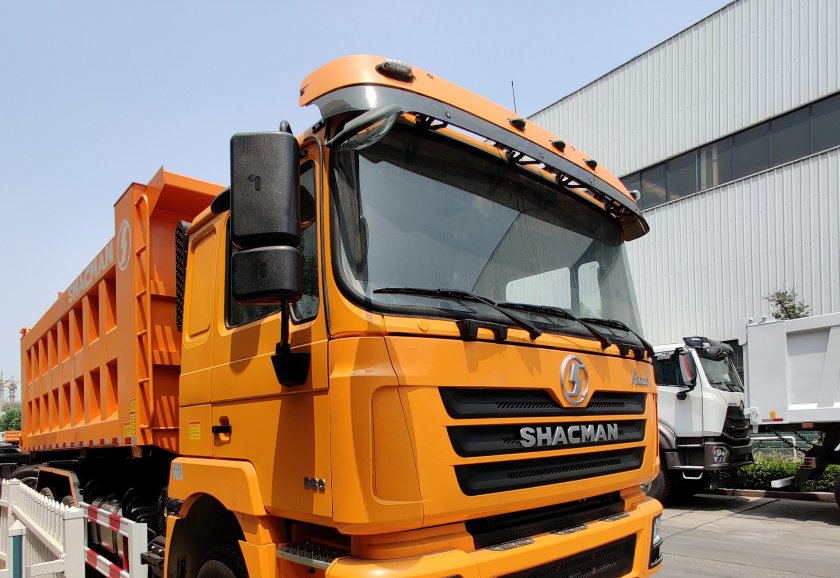

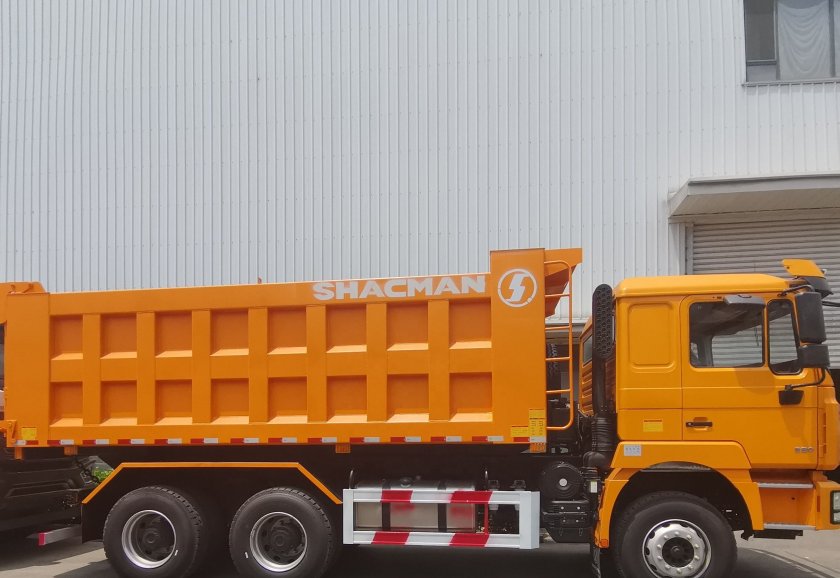

Shacman F3000 6x4 10 wheels 340hp 18m3 mining tipper truck

The Shacman F3000 6x4 10 - wheel 340hp 18m³ mining tipper truck is a powerful and reliable workhorse for mining operations. It features a sturdy chassis that can withstand the harsh conditions of mining sites. Equipped with a 340 - horsepower engine, it offers strong driving force. The 18m³ large - capacity carriage is suitable for transporting a large amount of mining materials. Its 6x4 drive system ensures excellent traction and stability on rough terrains. With high - quality components and advanced technology, this truck provides high durability and efficient performance, meeting the demanding needs of the mining industry.

Shacman F3000 6x4 10 wheels 340hp 18m3 mining tipper truck


Shacman F3000 6x4 10 wheels 340hp 18m3 mining tipper truck


Shacman F3000 6x4 10 wheels 340hp 18m3 mining tipper truck


Shacman F3000 6x4 10 wheels 340hp 18m3 mining tipper truck Specification:

Traction type

6×4

Drive System

LHD/(RHD is optional)

Cabin

F3000 Flat Cabin, one sleeper, Air Conditioner

Engine

Brand

WEICHAI

Model

WP10.340E32  EuroII

Rated power

340hp

Engine displacement

9.726 liters

Gearbox

Fast 9 speeds (9JSD180T)

Clutch

Ф430 Diaphragm type

Steering

ZF technology

Axle

Front

6.5 Ton STR

Rear

16 Ton STR double reduction axle, ratio:5.73

Max. running speed (km/h)

77

Tire

12.00R20

Fuel tank

400L

Kerb weight (kg)

14200

Total mass (kg)

31000

Wheel base (mm)

3600+1350

Overhang (mm) (front/rear)

1525/1955

Track (mm) (front/rear)

1939/1850

Approach / departure angle(°)

20/33

Dump body

Size

5400x2300x1500 18cbm

Thickness

Bottom 8, front 6, side 6

Lifting system

Front lifting

Overall dimensionsL*W*H

8500x2500x3450
