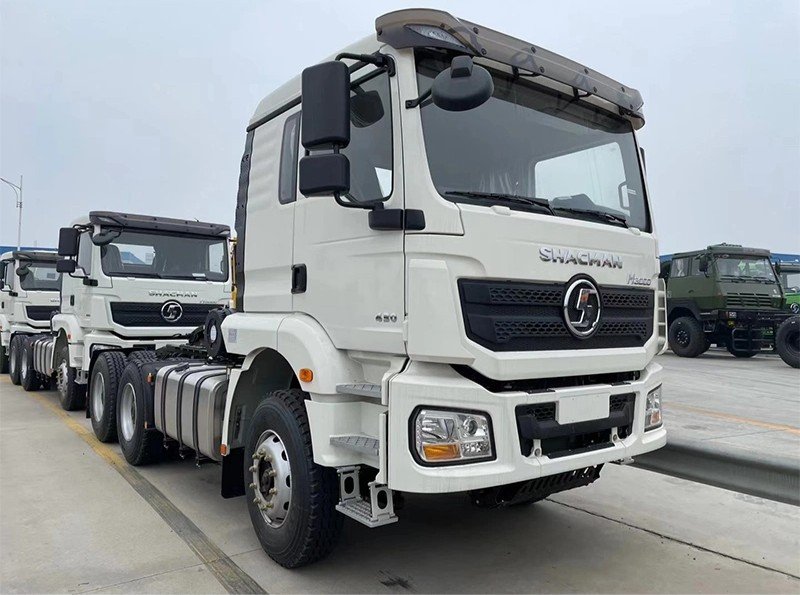

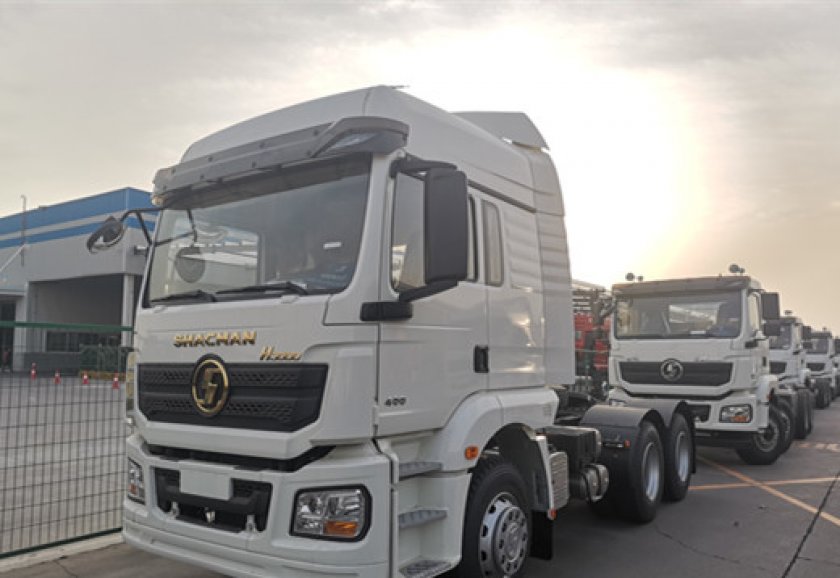

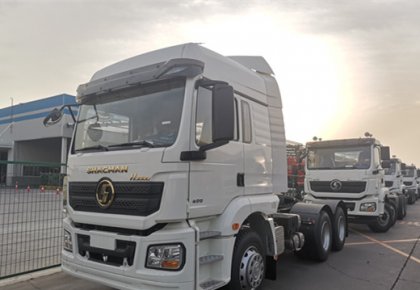

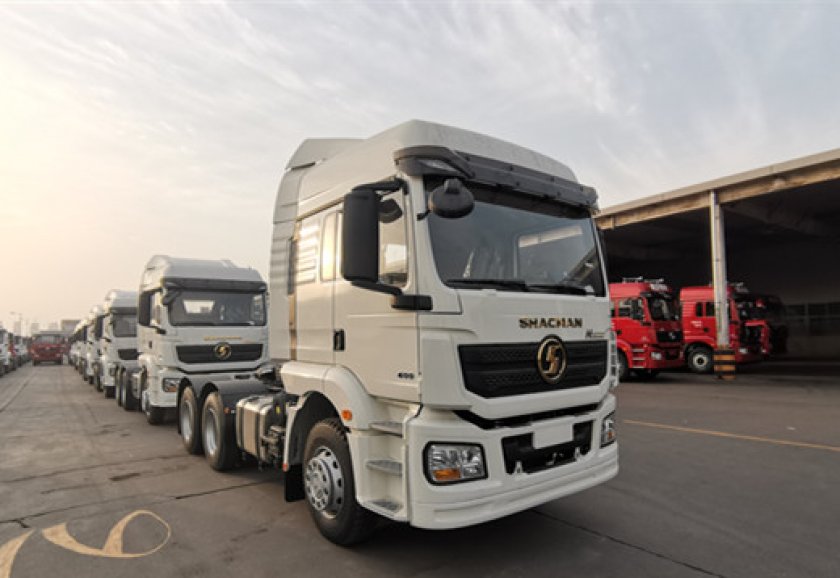

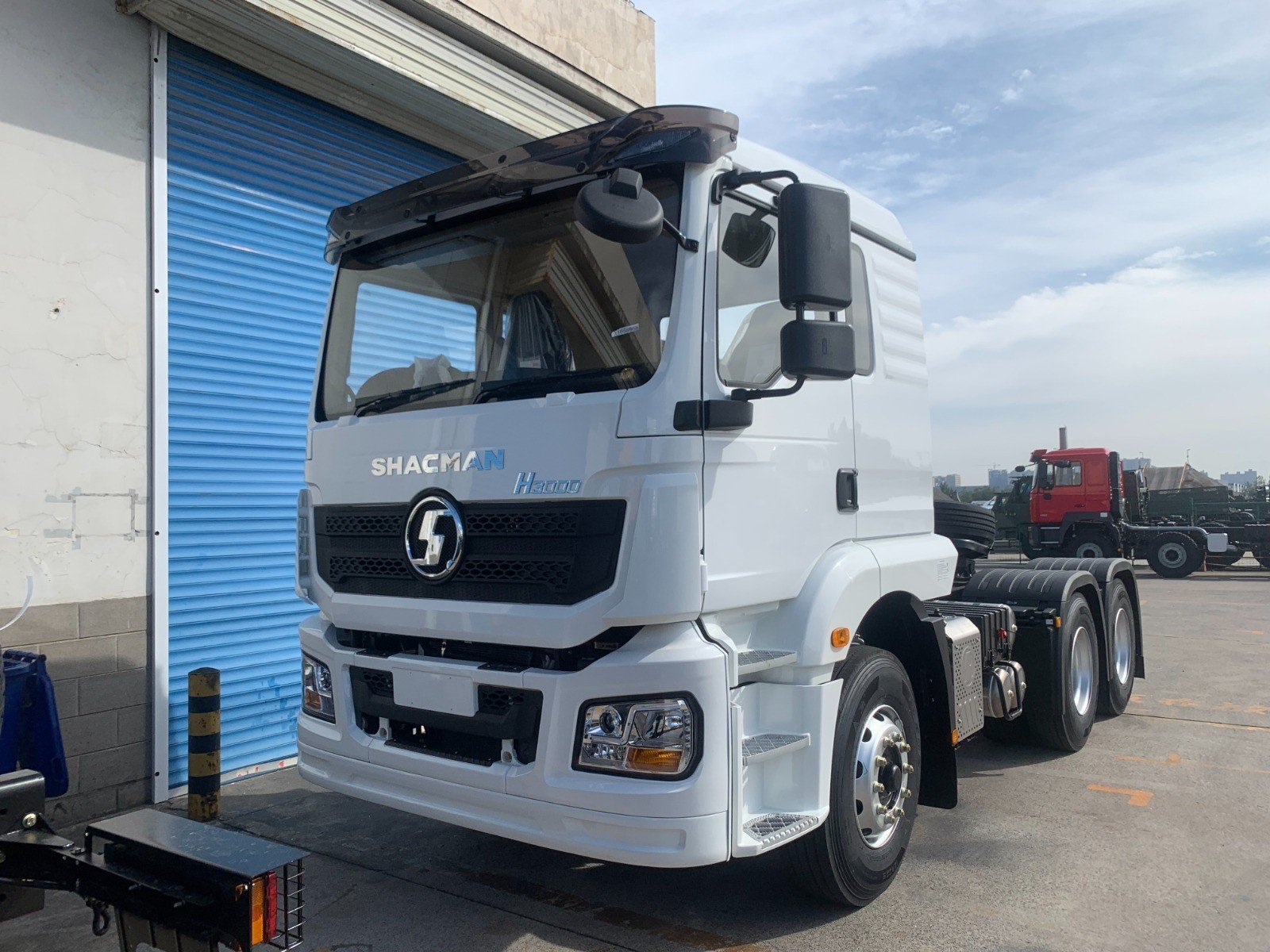

Shacman H3000 6x4 Tractor Truck

Model

SX4255HT324R Light Duty Type

Traction type

6X4 RHD

Driver's cab

H3000 high cab with 2 sleepers, top air deflector, air main seat, four-point air suspension, lever-type rear-view mirror, manual flip, ordinary heater, electric window shaker, telescopic shaft control, ordinary air filter, aluminum alloy air reservoir, Ordinary 50 saddle, corrugated board mounting plate, metal bumper, two-stage boarding pedal, split fender, taillight protection grid, 165Ah maintenance-free battery, SHACMAN logo, full English logo, mixed pattern on the front tire, rear wheel and Spare tire block, fuel system anti-theft, add a long-lasting coarse filter

Dimension

Wheel base(mm): 3175+1350

Overall size(mm): 6860x2490x3710mm

Engine

Brand: Weichai

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter-cooling

Engine model: WP10.380E22  Euro II

Maximum output: 380HP

Rated speed: 2200rpm

Max torque: 1600N.m/1300-1400rpm

Number of cylinder:6

Displacement:9.726L

Clutch

430mm

Transmission

12JSD200T-B

Front axle

MAN 5.5T

Rear axle

MAN 13T single reduction driving axle

Ratio: 4.111

Frame (mm)

850×270(8+4)

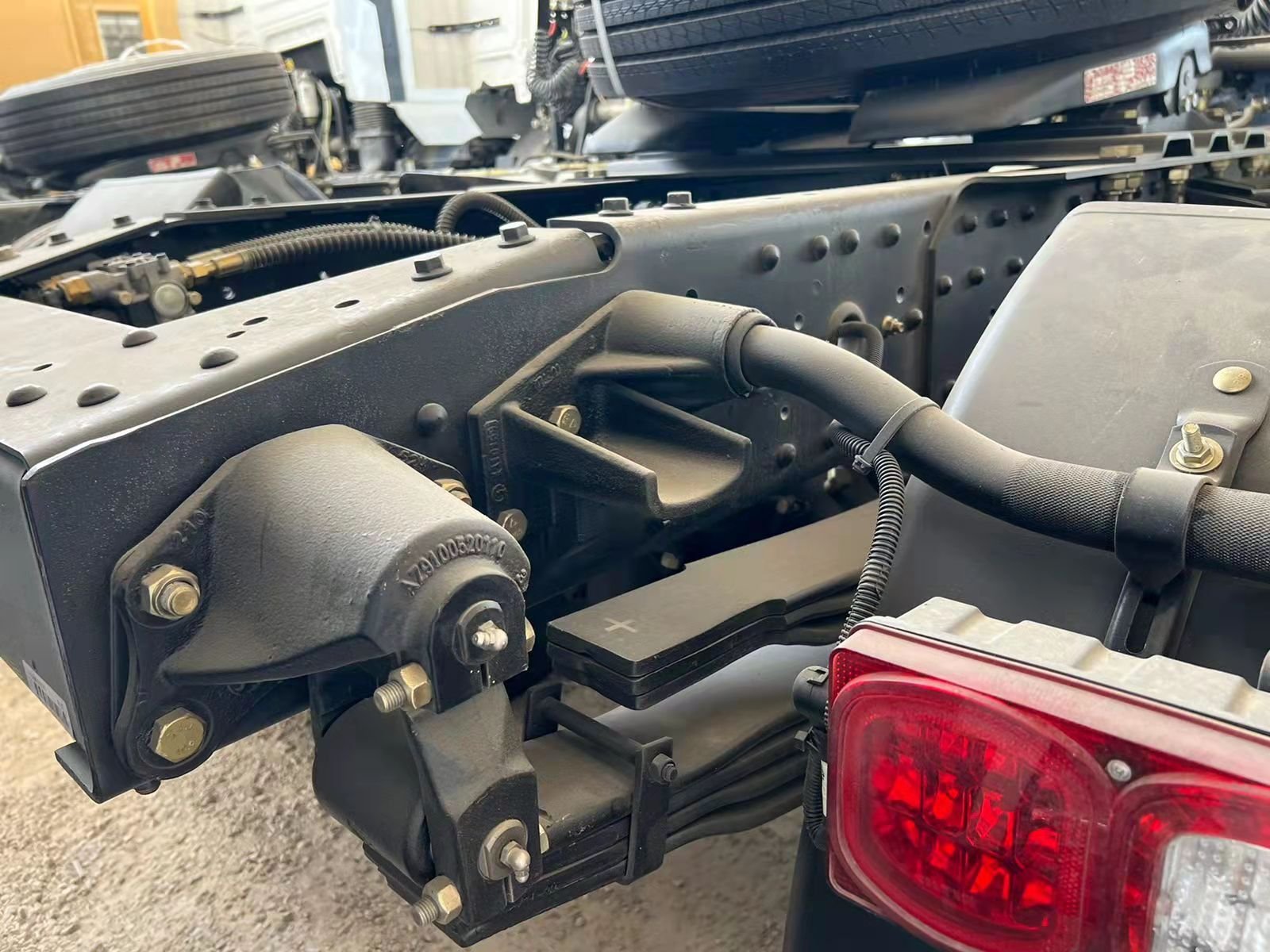

Suspension

Few leaf spring

Tyre

12R22.5 tubeless tire (10+1 PCS) Triangle Brand

Performance

Maximum driving speed: 105km/h

Economical speed: 65-75km/h

Fuel tank

400L Aluminum alloy

Fifth wheel

50#
