Main Technology Parameter | |

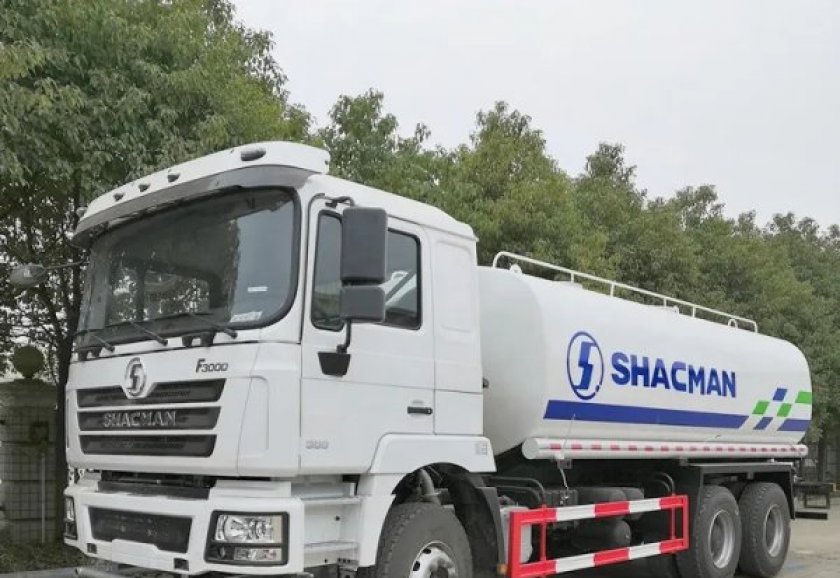

Model name | Shacman Delong F3000 Water tank truck |
Model | SX5255GSSDN434 |
Driving type | Right hand drive |
Traction type | 6×4 |
Color | optional |
Weights | |
Rated payload weight(kg) | 20000 |
Curb weight(kg) | Approx.11000 |
Dimensions | |
Wheelbase(mm) | 4375+1400 |
Overall dimension(mm) | Approx.10380×2500×3200 |
Water capacity(m3) | 20 |
Engine | |
Engine model | WP10.300E22, 300HP WEICHAI engine |
Emission standard | Euro 2 |
Engine type | 4 stroke water-cooled, inter-cooling |
No. of cylinders | straight-6 cylinders |
Displacement(L) | 9.3L |
Max. output (kw) | 221kw |
Fuel Tanker（L） | 400 aluminum fuel tank |
Drive Line | |
Transmission | RTD-11509C with QH50 flange power take-off |
9 speeds ,9 forwards,1 reverse gear, manual operation | |
Steering | Power steering |
Brake | air brake, engine exhaust brake |
Cab | |
Cabin | Single sleeper, with A/C |
Standard configuration | Air container |
Axle | |
Front axle | MAN 7.5T |
Rear axle | MAN 13T , double reduction driving axles with inter-wheel & inter-axle differential locks |
Tire specification | |
Tire specification | 12.00R20 standard tire,10 tires+1 spare part |
Water tank truck | |
Effective loading capacity | 20 m3 |
Parameter | |
Economic speed/maximum speed (km/h) | 50～70/90 |
Max. Gradeability | 45(%) |
Rear overhang(mm) | 2400 |
Tank body parameters | |
Tank volume | 20000 liters |
Tank dimension | 5900x2300x1500 mm |
Tank material | Carbon steel, or customized stainless steel |
Main parts | tank , manhole, water pipe, etc. |
Color | Customized |
