Main Technology Parameter | |

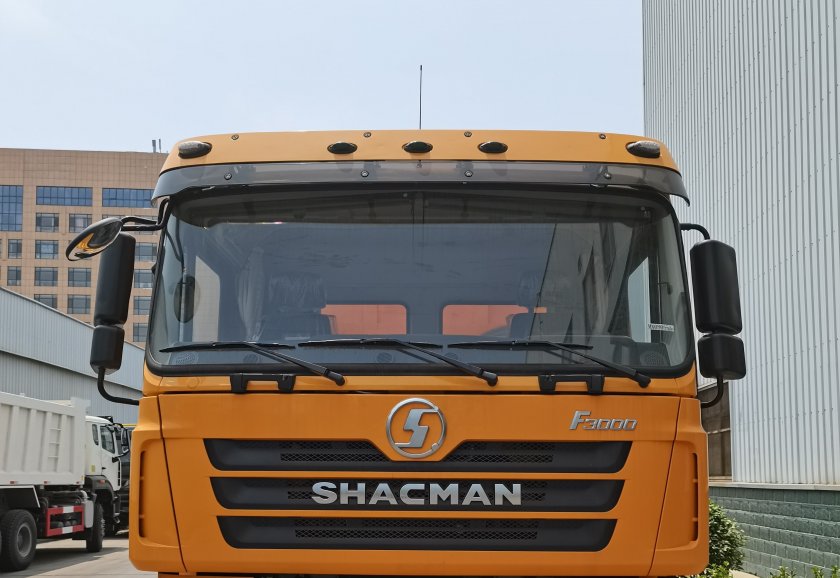

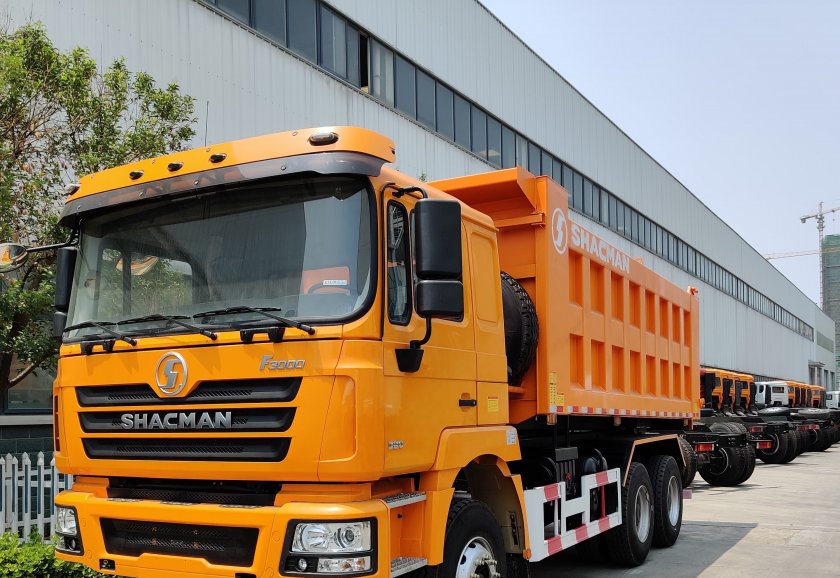

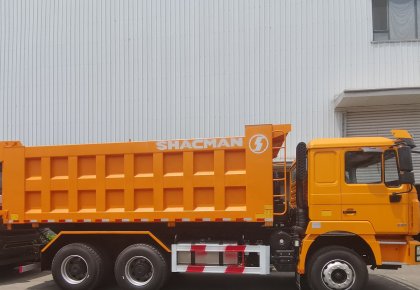

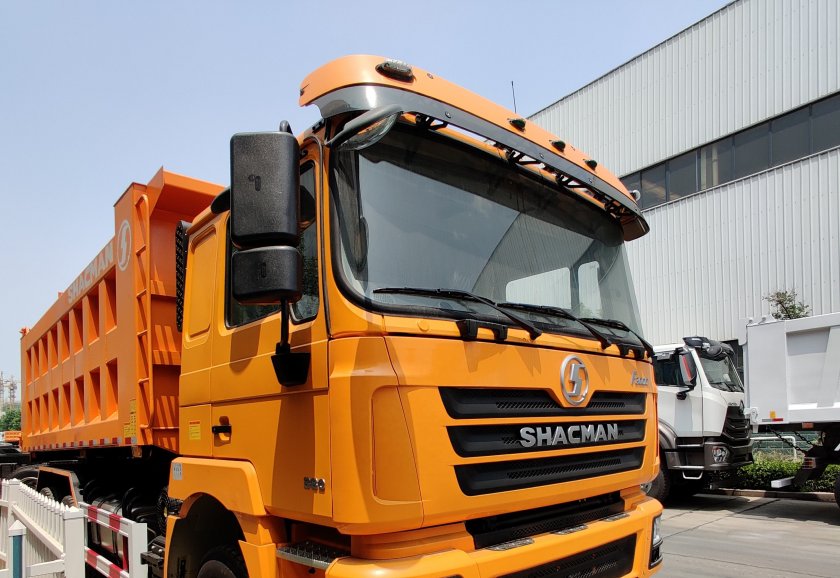

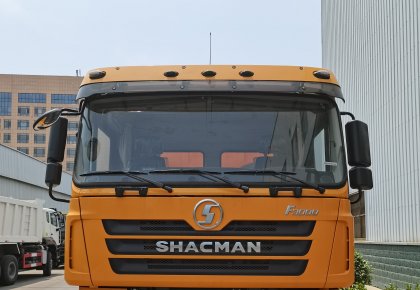

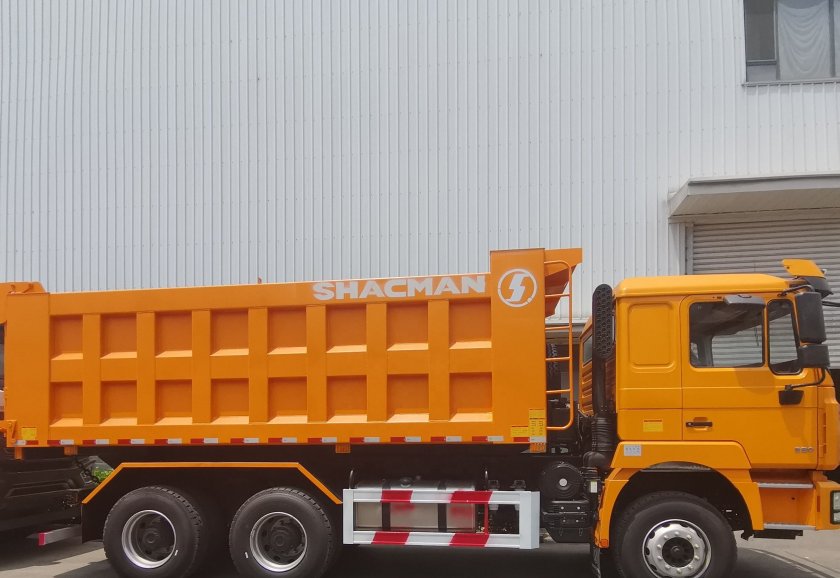

Model name | Shacman Delong F3000 dump truck |
Driving type | Left hand drive |
Traction type | 6×4 |
Model | SX3255JM384 |
Color | optional |
Weights | |
Gross Vehicle Weight(kg) | Approx.12500 |
Gross Combination Weight(kg) | Approx.50000 |
Dimensions | |
Wheelbase(mm) | 3775+1400 |
Overall dimension(mm) | Approx. 8354×2490×3450 |
Engine | |
Engine model | WP10.340E32, 340HP, WEICHAI engine |
Emission standard | Euro 2 |
Engine type | 4 stroke water-cooled, inter-cooling |
No. of cylinders | straight-6 cylinders |
Displacement(L) | 9.4 / Diesel |
Max. output (kw) | 243 |
Fuel Tanker（L） | 380L Iron fuel tank |
Drive Line | |
Gearbox | RTD11509C+QH50 |
9 forwards, 1 reverse gear, manual geabox | |
Steering | Power steering |
Brake | Air brake, engine exhaust brake |
Clutch | 430 diaphragm |
Cab | |
Cabin | Long flat top cab, single sleeper, with A/C; Can be tipped forwardly, with inner A/C and one sleeper bed |
Standard configuration | Air container |
Axle | |
Front axle | MAN 7.5T- drum brake |
Rear axle | 16T STR- double reduction pneumatic brake, double reduction driving axles with inter-wheel & inter-axle differential locks; Axle ratio 5.73 |
Tire specification | |
Tire specification | 12 R22.5 standard tire,10 tires+1 spare part |
Parameter | |
Economic speed/maximum speed (km/h) | 40～55/75 |
Max. Gradeability | 35(%) |
Rear overhang(mm) | 825 |
Suspension | Front and rear multi leaf springs, (4/4)+ 4 riding bolts |
Frame(mm) | 850x300（8+7） |
Color | Customized |
Body parameters | |

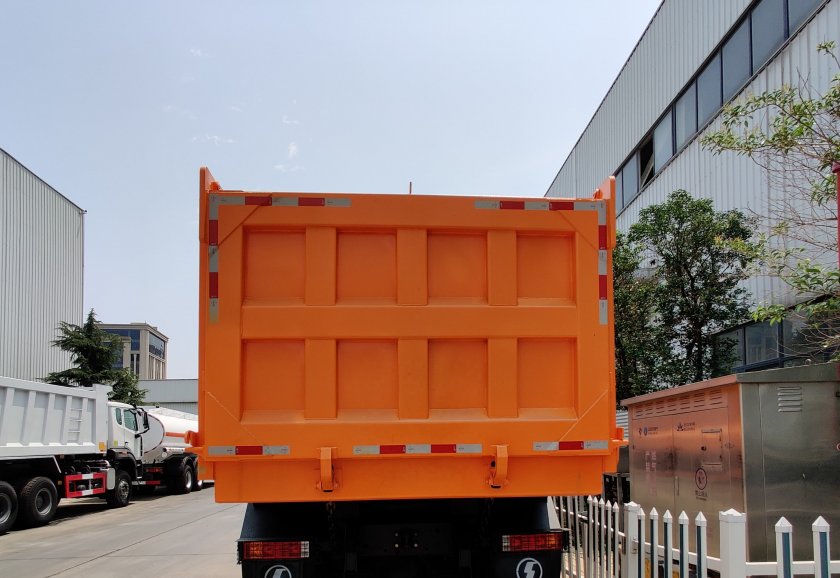

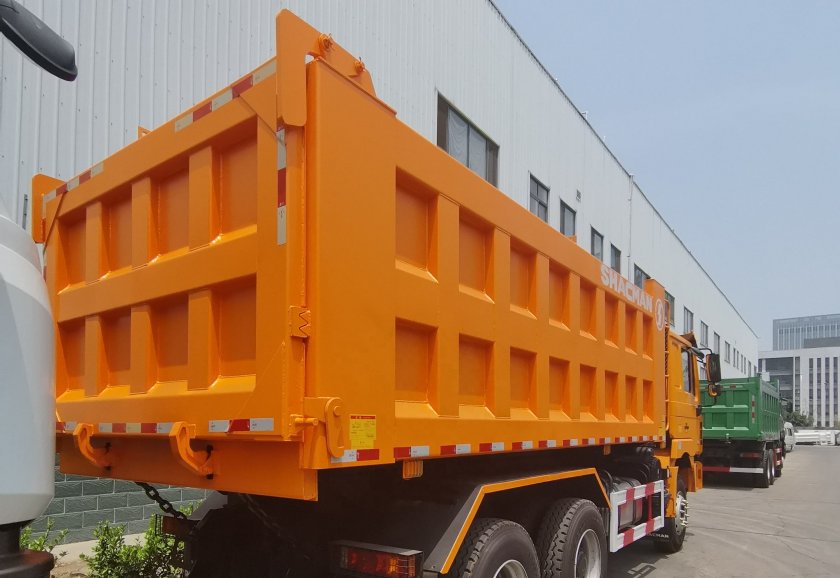

Body dimension(mm) | 5200x2300x1300 |
Body volume(m3) | 15.5 |
Material | Carbon steel plates |
Shape | Tin Word format |
Lifting method | Middle hydraulic lifting system |
