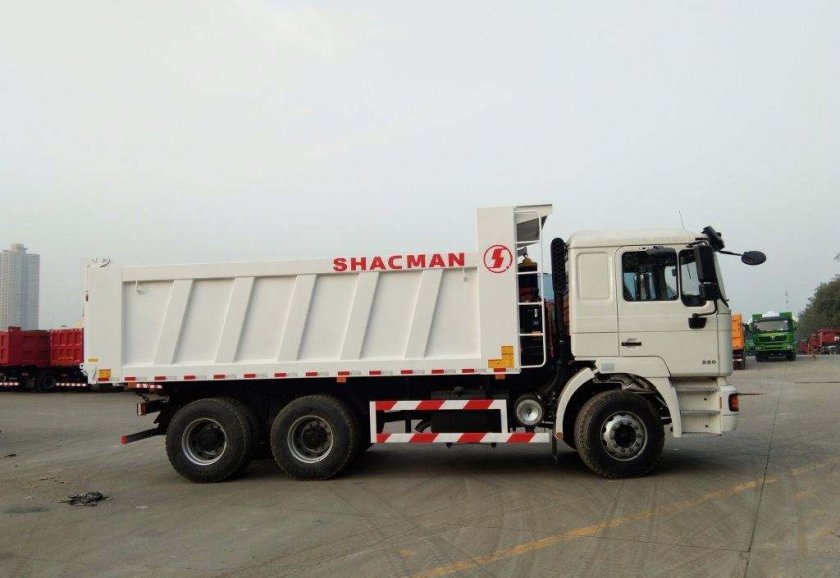

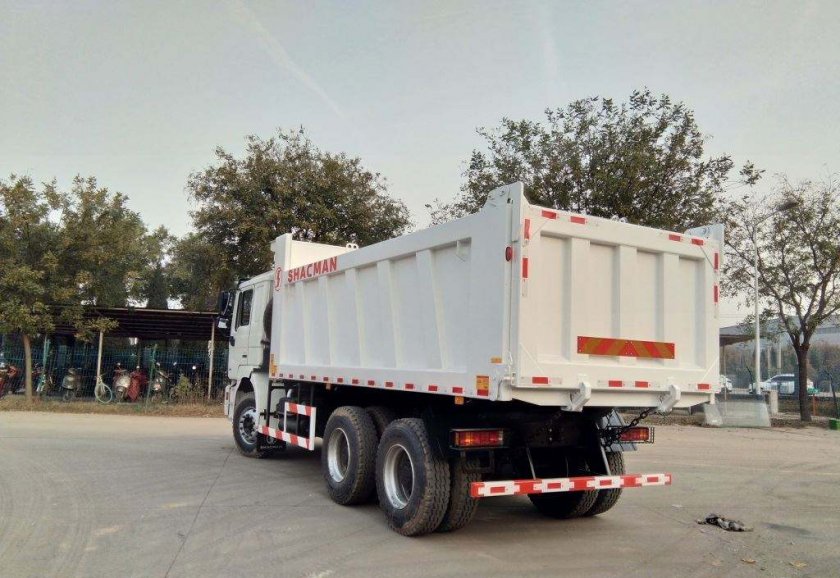

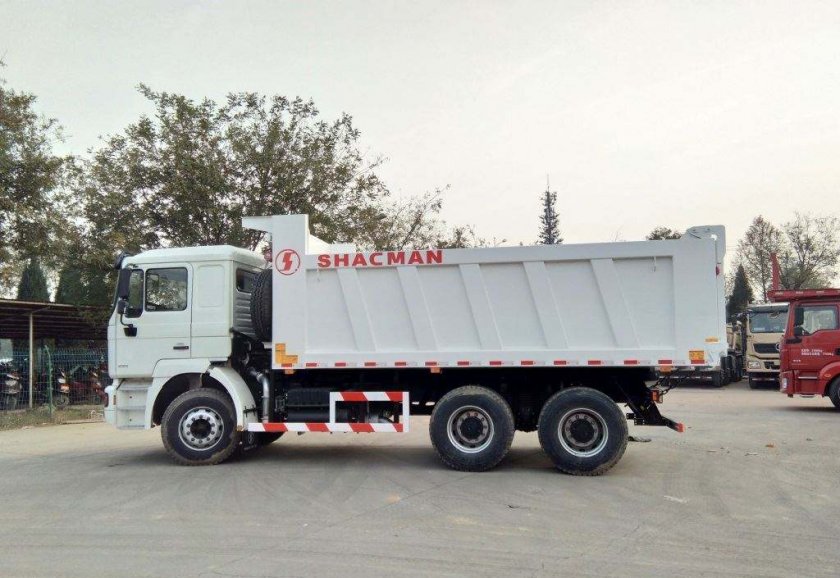

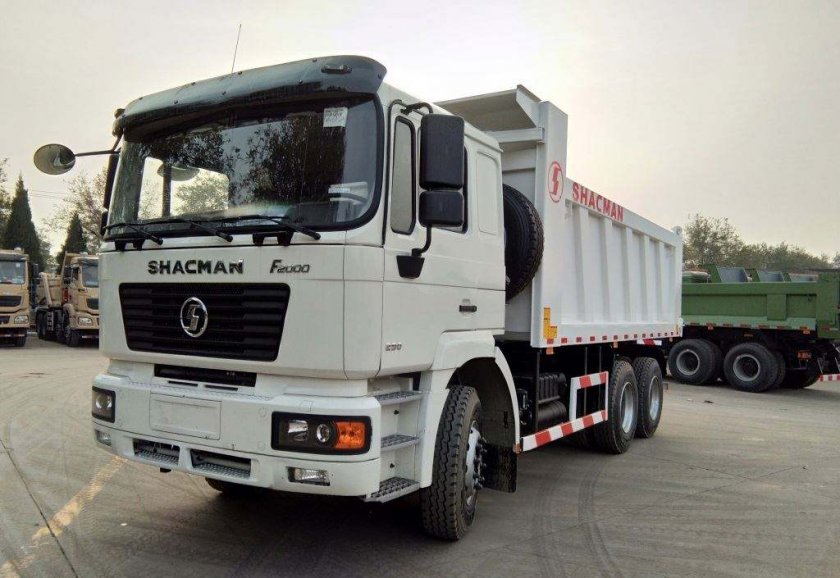

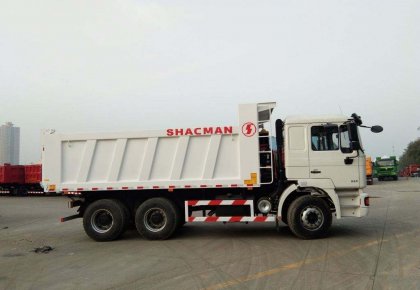

Shacman F2000 6x4 290hp dump truck special for Algeria Market
Traction type | 6×4 | ||
Drive System | LHD | ||
Cabin | F2000 Flat Cabin, one sleeper, Air Conditioner | ||
Engine | Brand | WEICHAI | |
Model | WP10.290E32 EuroII | ||
Rated power | 290hp | ||
Engine displacement | 9.726 liters | ||
Gearbox | Fast 12 speeds (12JSD180T) | ||
Clutch | Ф430 Diaphragm type | ||
Steering | ZF technology | ||
Axle | Front | 6.5 Ton STR | |
Rear | 16 Ton STR double reduction axle, ratio:5.73 | ||
Max. running speed (km/h) | 77 | ||
Tire | 12.00R20 | ||
Fuel tank | 400L | ||
Kerb weight (kg) | 14200 | ||
Total mass (kg) | 31000 | ||
Wheel base (mm) | 3600+1350 | ||
Overhang (mm) (front/rear) | 1525/1955 | ||
Track (mm) (front/rear) | 1939/1850 | ||
Approach / departure angle(°) | 20/33 | ||
Dump body | Size | 5200x2300x1350 | |
Thickness | Bottom 8, front 6, side 4 | ||
Lifting system | Front lifting | ||
Overall dimensions（L*W*H） | 8500x2500x3450 | ||
